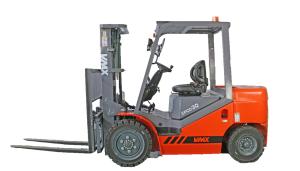

Isuzu Engine Stand Up Taylor Forklift 4 Ton Fork Width 130mm Red Yellow

Name: Isuzu Engine Stand Up Taylor Forklift 4 Ton Fork Width 130mm Red Yellow
Brand: VMAX
Price: 1 USD

Model Number : CPCD40

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Place of Origin : ANHUI,CHINA

Brand Name : VMAX

MOQ : 1UNIT

Price : Negotiable

Packaging Details : bubble wrap

Delivery Time : 45 DAYS

Supply Ability : 3000unit / year

color : red

engine : isuzu

Type : diesel forklift truck

Rated Loading Capacity : 4 ton

Power Souce : Diesel Engine

Contact Now

4.0 Ton Automatic Transmission Diesel Forklift with cabin and Japanese Isuzu engine CPCD40

Quick Details

Condition:New

Place of Origin:Anhui, China (Mainland)

Brand Name:Vmax

Model Number:CPCD40

Type:Powered Pallet Truck

Power Souce:Diesel Engine

Rated Loading Capacity:4000kg

Max. Lifting Height:6000mm

Min. Lifting Height:3000mm

Fork Length:1070mm

Fork Width:130mm

Overall Dimensions:

2895*1410*2105

Certification:

ISO&CE certificate

After-sales Service Provided:

Engineers available to service machinery overseas

Color:Red yellow

package:

2sets/20GP

OEM:offered

Specifications

* Load capacity 4000kg with Isuzu c240 engine.3M lift height,1.07m fork,solid tyres. Automatic,12months warranty.


Model		Unit	CPC40/CPCD40
Power type			Diesel
Rated capacity		kg	4000
Load center		mm	500
Mast Lifting height		mm	3000
Free lift height		mm	175
Fork size(LWT)		mm	1070×125×45
Tilting Angles(Front/Rear)		deg	6°/12°
Front overhang		mm	485
Exterior Size	Length without fork	mm	2680
	Overall width	mm	1225
	Mast drop	mm	2065
	Max.lift	mm	4250
	Front-wheel Overhead	mm	2070
Min Turning Radius		mm	2420
Min.intersecting aisle		mm	2100
Speeds	Max Driving speeds	km/h	18.5/20
	Lifting speeds	mm/s	470/520
	Lowering speeds	mm/s	550/520
Max.grade ability		%	20
Total weight		kg	4300
Tires	Front		28*9-15-12PR
Tires	Rear		6.5-10-10PR
Wheelbase		mm	1700
Tread	Front	mm	1000
Tread	Rear	mm	970
Min.ground clearance		mm	110
Engine	Model		XINCHANG490BPG
	Rated output	kw/rpm	37/2650
	Rated torque	N.m/rpm	148/1800
	No.of cylinder		4
	Displacement	L	2.54
Fuel tank capacity		L	52
